Including expansion body, dryer bed, automatic feeding system, sieving devices, weighing system, blower, etc.
Main advantage:
1. Fully automatic and intelligent prodcution;
2. Human-machine cooperation, controlled by PLC and color touch screen, easy to operate;
3. Accurate density, high output and energy-saving
4. Smooth operation and stable
Function Description:
1. This machine accept PLC and color touch screen control, automatic feeding, automatic control barrel temperature and pressure, automatic sensor testing material;
2. The barrel is made by stainless steel, realize constant pressure foaming;
3. Control barrel temperature and pressure by Japanese imported pressure reducing valve and Germany imported proportional valve;
4. Using famous brand electrical components and pneumatic components, to ensure the machine running stable and smooth operation;
5. Using the photoelectric to control the expansion material volume,making the expansion density uniform;
6. Automatic discharge the material, by using fan to blow material, increase the discharge speed;
| chamber diameter: | |
|---|---|
| chamber hight: | |
| Expansion Rate: | |
| Density Tolerance: | |
| Cycle Time : | |
Main advantage:
1. Fully automatic and intelligent prodcution;
2. Human-machine cooperation, controlled by PLC and color touch screen, easy to operate;
3. Accurate density, high output and energy-saving
4. Smooth operation and stable
| Subjects | Batch Pre-expander Machine | ||
| Model | FW-YF1100-1 | FW-YF1500-1 | |
| Chamber | Diameter | Ø1100mm | Ø1500mm |
| Height | 1500mm | 2200mm | |
| Volume | 0.95m³ | 3m³ | |
| Expansion Rate | First Time Expansion | 12-30kg/m³ | 12-20kg/m³ |
| Density Tolerance | ≤±3% | ≤±3% | |
| Cycle Time | ≤120s/cycle | ≤120s/cycle | |
| Steam | Entry | DN40 | DN50 |
| Pressure | 0.4-0.6Mpa | 0.4-0.6Mpa | |
| Consumption | 3.5-7kg/cycle | 6-9kg/cycle | |
| Compressed Air | Entry | DN40 | DN50 |
| Pressure | 0.4-0.6Mpa | 0.4-0.6Mpa | |
| Consumption | 0.5-0.6m³/cycle | 0.6-0.7m³/cycle | |
| Exhaust | Upper | DN100 | DN150 |
| Lower | DN80 | DN100 | |
| Throughput | 12g/l (kg/h) | ≥340 | ≥633 |
| 15g/l (kg/h) | ≥420 | ≥790 | |
| 20g/l (kg/h) | ≥570 | ≥1200 | |
| 25g/l (kg/h) | ≥710 | -- | |
| 30g/l (kg/h) | ≥710 | -- | |
| Material Conveying Port | 200mm | 200mm | |
| Power | Spindle Motor | 4kw | 7.5kw |
| Discharge Fan | 1.5kw | 2.2kw | |
| Exhaust Fan | 1.5kw | 2.2kw | |
| Vacuum Pump | 5.5kw | 5.5kw | |
| Drying Fan | 3kw | 4kw | |
| Material Conveying Fan | 4kw | 7.5kw | |
| Feeding and Mixing Motor | 0.75kw | 0.75kw | |
| Crushing Motor | 0.55kw | 0.55kw | |
| Total Installed Power | 20.8kw | 30.2kw | |
| Overall Dimension | L | 5600mm | 6000mm |
| W | 3100mm | 3700mm | |
| H | 4500mm | 5400mm | |
| Machine Weight | 3000kg | 4000kg | |

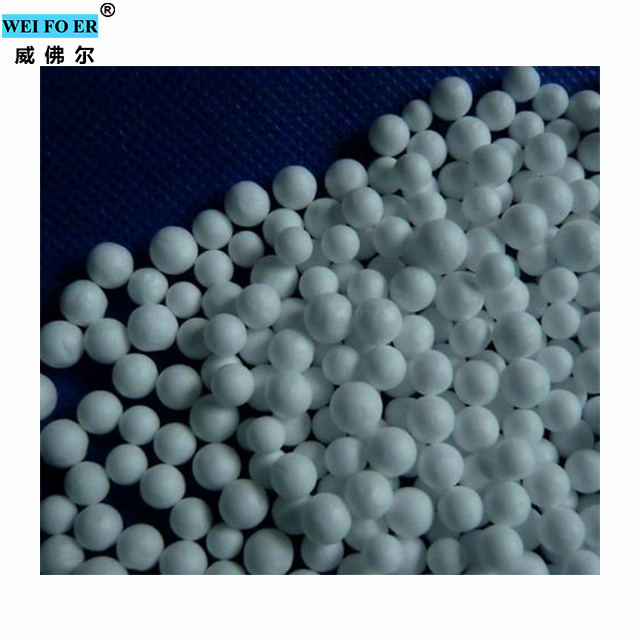

a---EPS pre-expander: it is used to expand the eps raw material to foamed beads;
 |  |  |
Hangzhou Fuyang Fuwei EPS Machinery Co., Ltd, "Weifoer Plastic Machienry", a professional eps machine manufacturer with more than 30 years' experiance, in HANGZHOU, CHINA, since 1984. Our aim is "product top quality eps machine", our purpose is "one time cooperation, life-long friends", Look forward to working with you.
Our mail product has: eps pre-expander machine, eps shape molidng machine, eps block moulding machine, eps cutting machine, eps foam mould, silo, filling gun, ejector and all kinds spare parts for eps machine; auxilliary equipment has steam boile, stean tank with insulation, air compressor, air tank, cooling tower, water pump and so on. If you are interested in our eps machine, contact us. WhatsApp:+86-18257172586
Standard export packaging:
---Outer package: standard export wooden cases;
---Inner package: plastic paper or wrapped with stretch film and etc.
Shipping:
---By sea from Shanghai or Ningbo port;
---By train from Ningbo station;
---By truck from Kashgar, Urumuqi or other checkpoint
We adhere to the principle of "Quality First, One Cooperation, Life-long Friends". Our drivers have been sold to dozens of countries including Egypt, Turkey, Uzbekistan, Ukraine, Tajikistan, Ribane, Algeria, Mauritania, Peru, Taiwan, etc.
