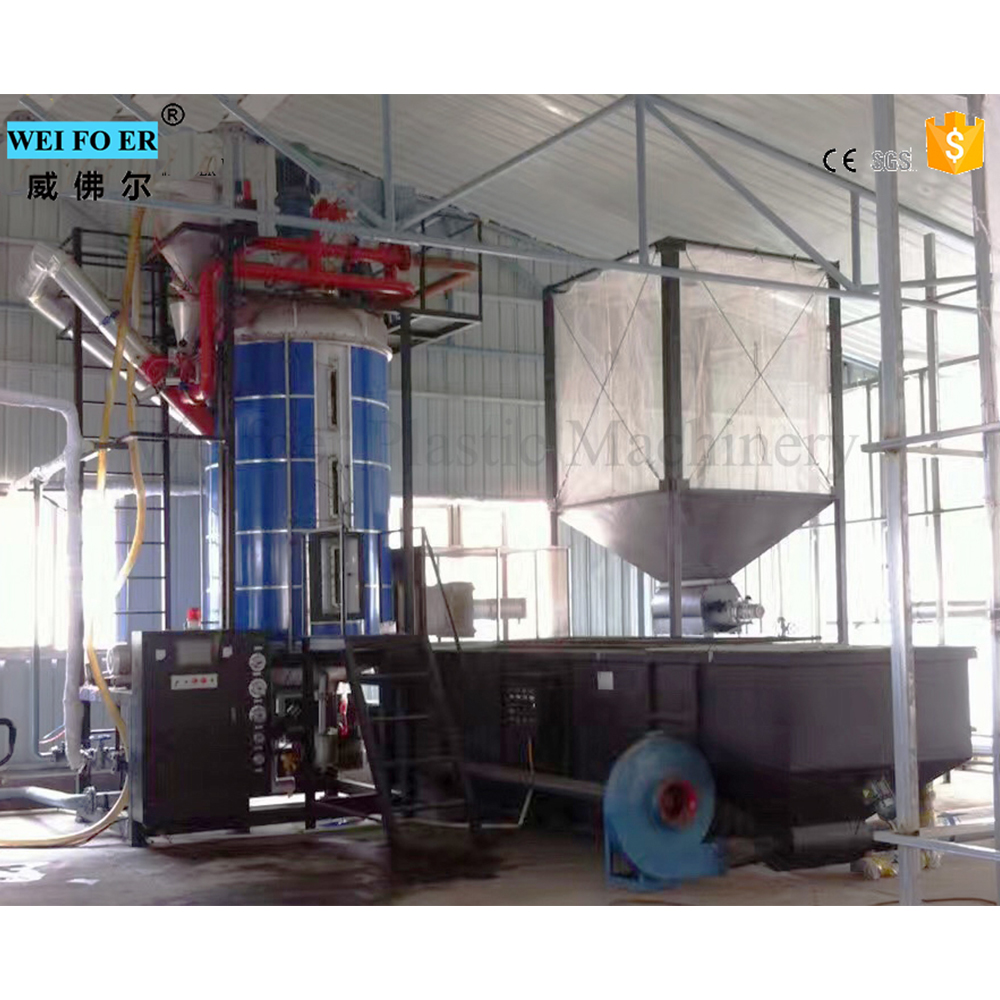

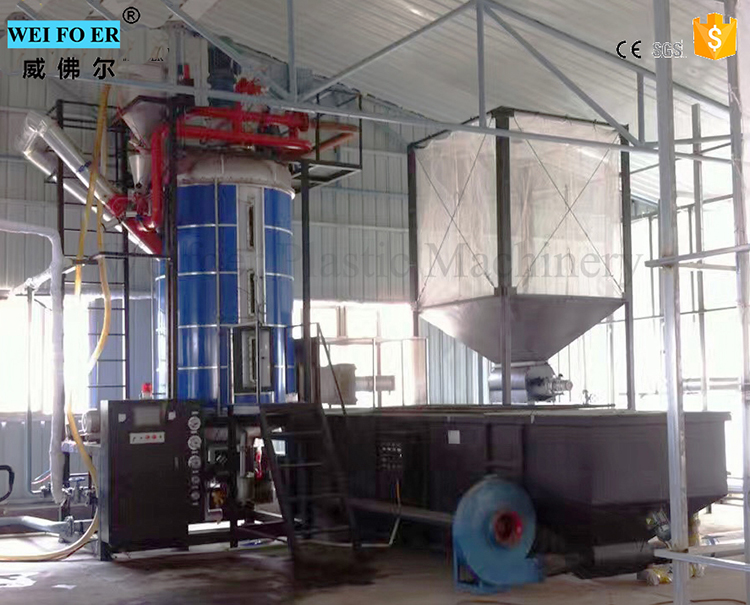

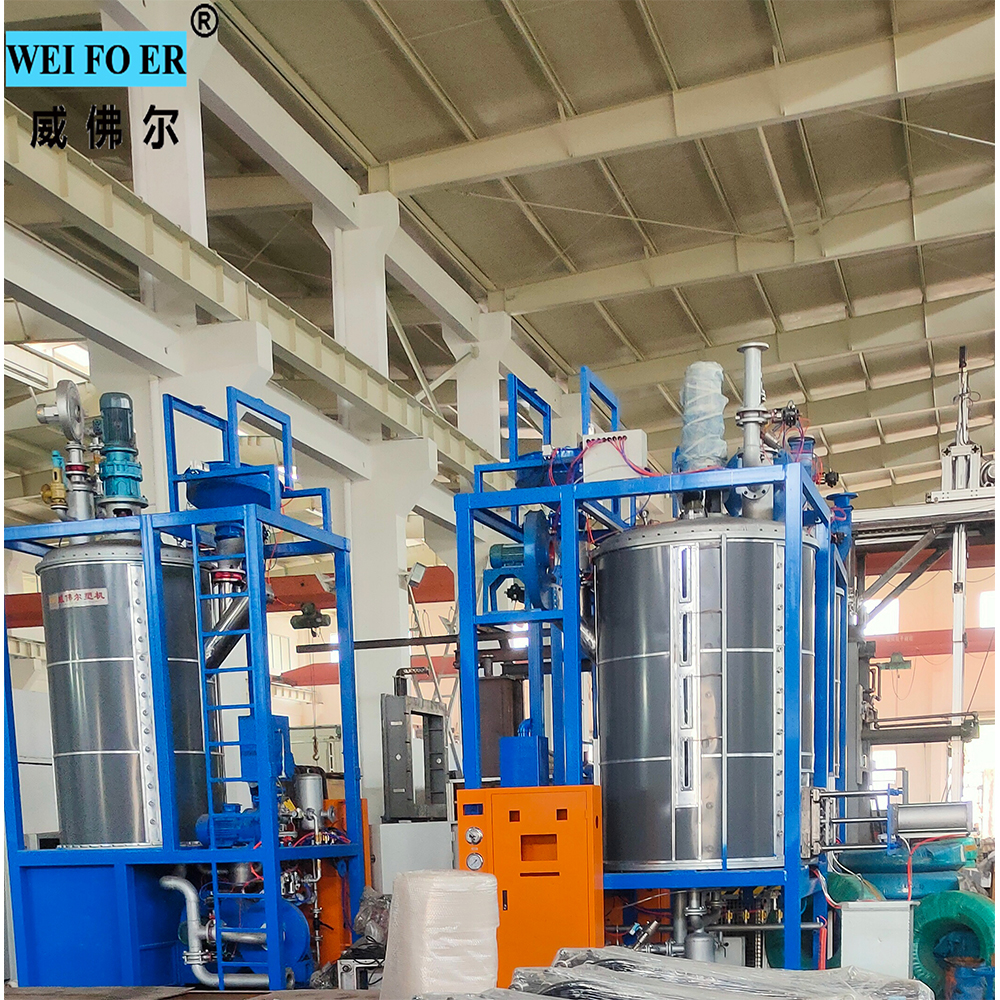

pre-expander machine

Main advantage:

1. Fully automatic and intelligent prodcution;

2. Human-machine cooperation, controlled by PLC and color touch screen, easy to operate;

3. Accurate density, high output and energy-saving

4. Smooth operation and stable


Function Description:

1. This machine accept PLC and color touch screen control, automatic feeding, automatic control barrel temperature and pressure, automatic sensor testing material;

2. The barrel is made by stainless steel, realize constant pressure foaming;

3. Control barrel temperature and pressure by Japanese imported pressure reducing valve and Germany imported proportional valve;

4. Using famous brand electrical components and pneumatic components, to ensure the machine running stable and smooth operation;

5. Using the photoelectric to control the expansion material volume,making the expansion density uniform;

6. Automatic discharge the material, by using fan to blow material, increase the discharge speed;


Product Description







B.Main technical data

ItermFW-YF1500-2FW-YF1600-2
Chamber sizeDimension (mm)Φ1500Φ1600
High (mm)22002200
Effective volume (m3)34
Expansion rateSecond expansion (kg/m3)4---64---6
First back (kg/m3)8---128---12
First expansion (kg/m3)12---2012---20
Density tolerance %≤±3±3
Expansion cycle (s/cycle)≤120≤120
SteamEntry (DN)5050
Entry pressure (Mpa)0.4---0.60.4---6
Consumption (kg/cycle)6---97---12
AirEntry (DN)4040
Entry pressure (Mpa)0.4---0.60.4---0.6
Consumption (m3/cycle)0.6---0.70.7---0.8
ExhaustUpper exhaust (DN)100100
Lower exhaust (DN)100100
Fan outlet (DN)100100
Output4g/l (kg/h)≥280≥420
6g/l (kg/h)≥420≥625
8g/l (kg/h)≥560≥835
12g/l (kg/h)≥633≥1200
15g/l (kg/h)≥790≥1200
20g/l (kg/h)≥1200≥1200
Feed port (mm)200200
Installed power (kw)3434
Outline dimensionLength (mm)60006000
Width (mm)37004200
Height (mm)54005400
Weight (T)4.15.0

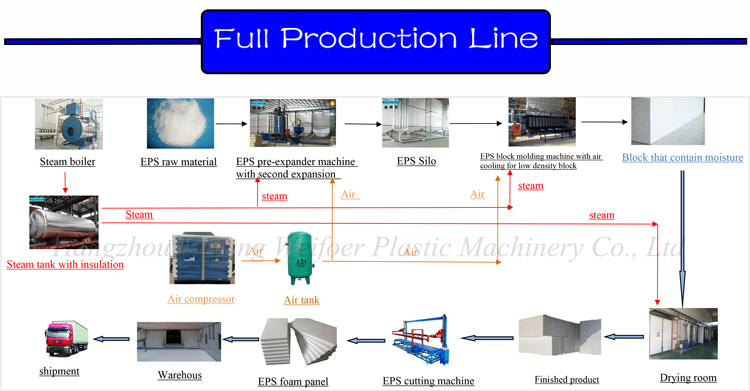

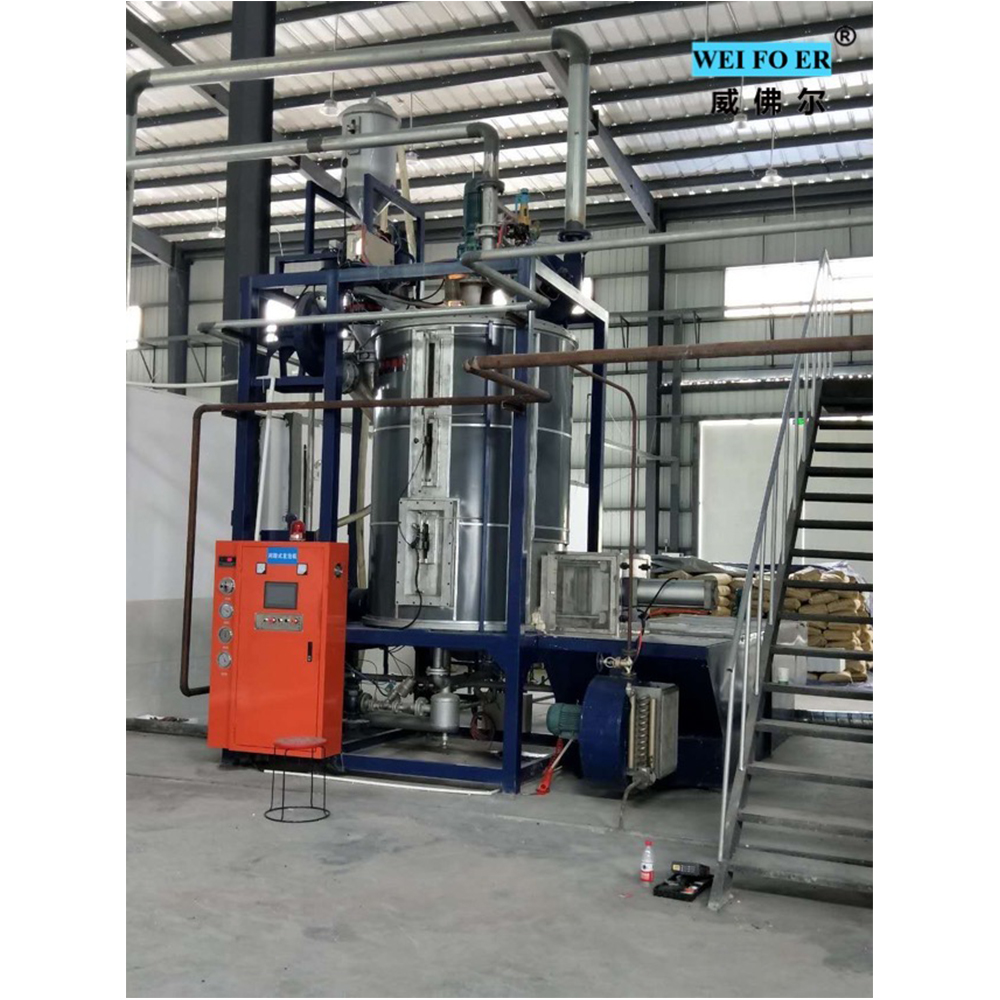

 a---EPS pre-expander: it is used to expand the eps raw material to foamed beads; by second expansion, getting the lower density material and making

      the light eps foam block.








Company

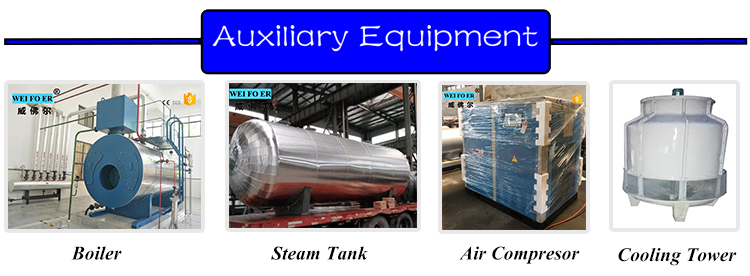

Hangzhou Fuyang Fuwei EPS Machinery Co., Ltd, "Weifoer Plastic Machienry",  a professional eps machine manufacturer, since 1984. Our mail product has: eps pre-expander machine, eps shape molidng machine, eps block moulding machine, eps cutting machine, eps foam mould, silo, filling gun, ejector and all kinds spare parts for eps machine; auxilliary equipment has steam boile, stean tank with insulation, air compressor, air tank, cooling tower, water pump and so on. If you are interested in our eps machine, contact us. WhatsApp:+86-18257172586

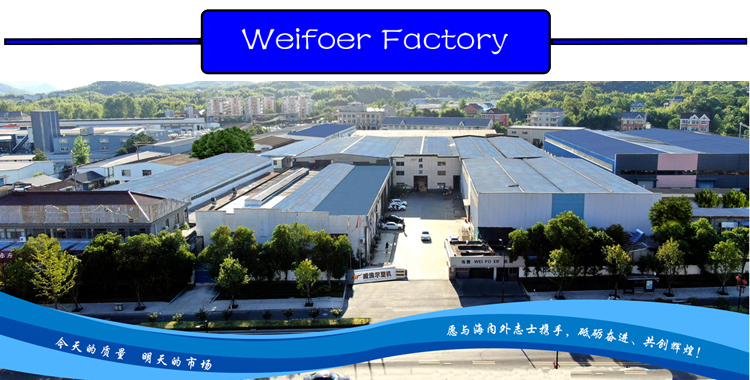

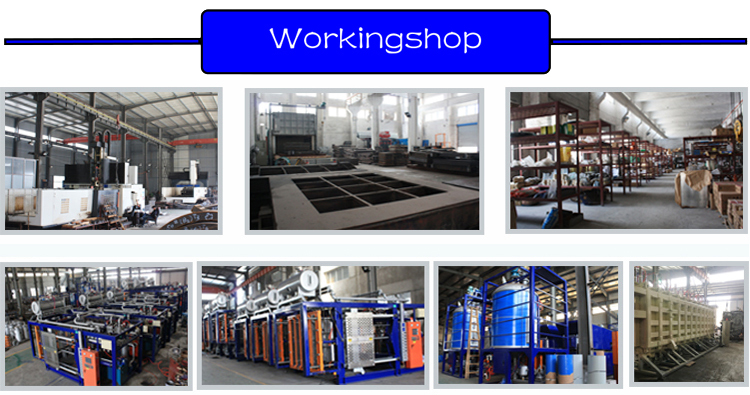

workshop show

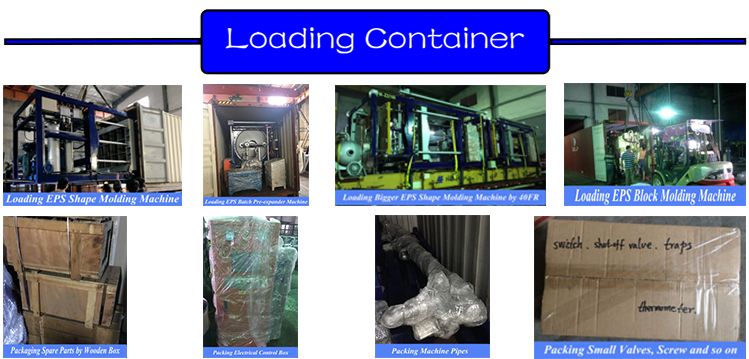

Packaging & Shipping


Standard export packaging:

---Outer package: standard export wooden cases;

---Inner package: plastic paper or wrapped with stretch film and etc.

Shipping:

---By sea from Shanghai or Ningbo port;

---By train from Ningbo station;

---By truck from Kashgar, Urumuqi or other checkpoint
