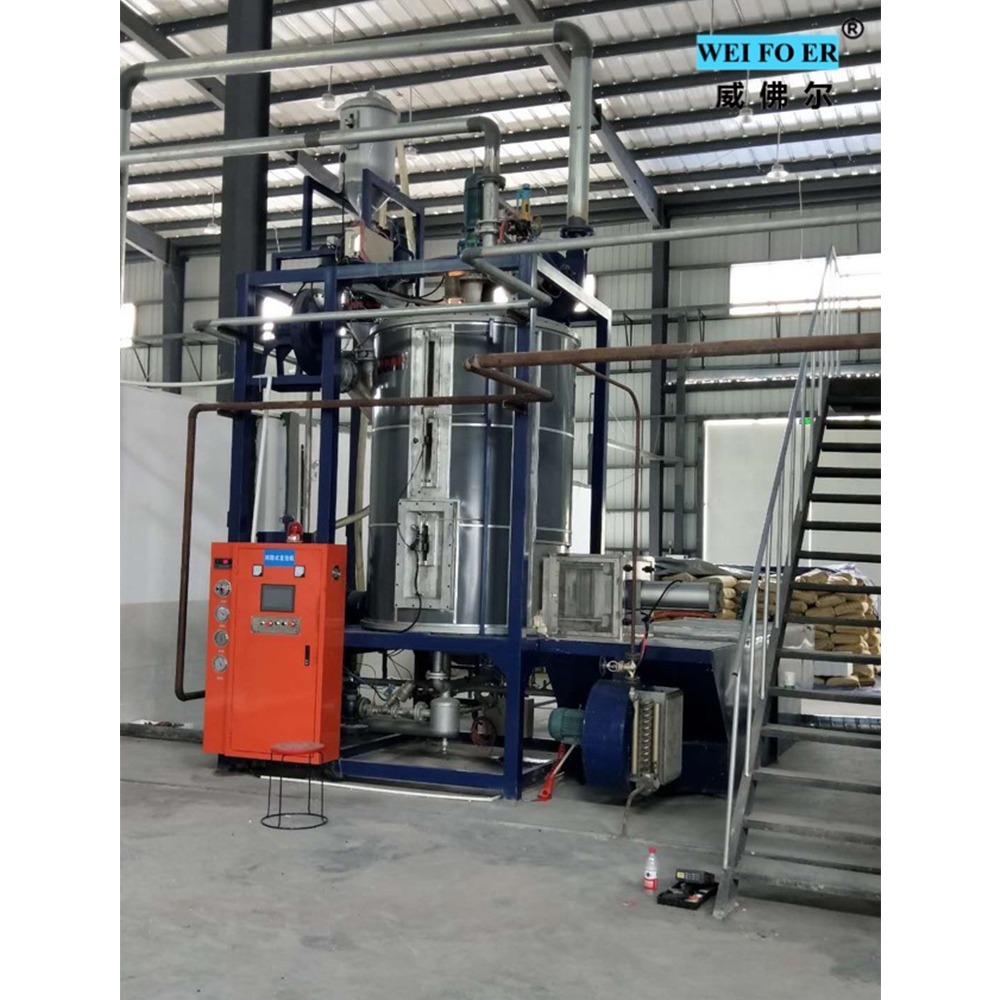

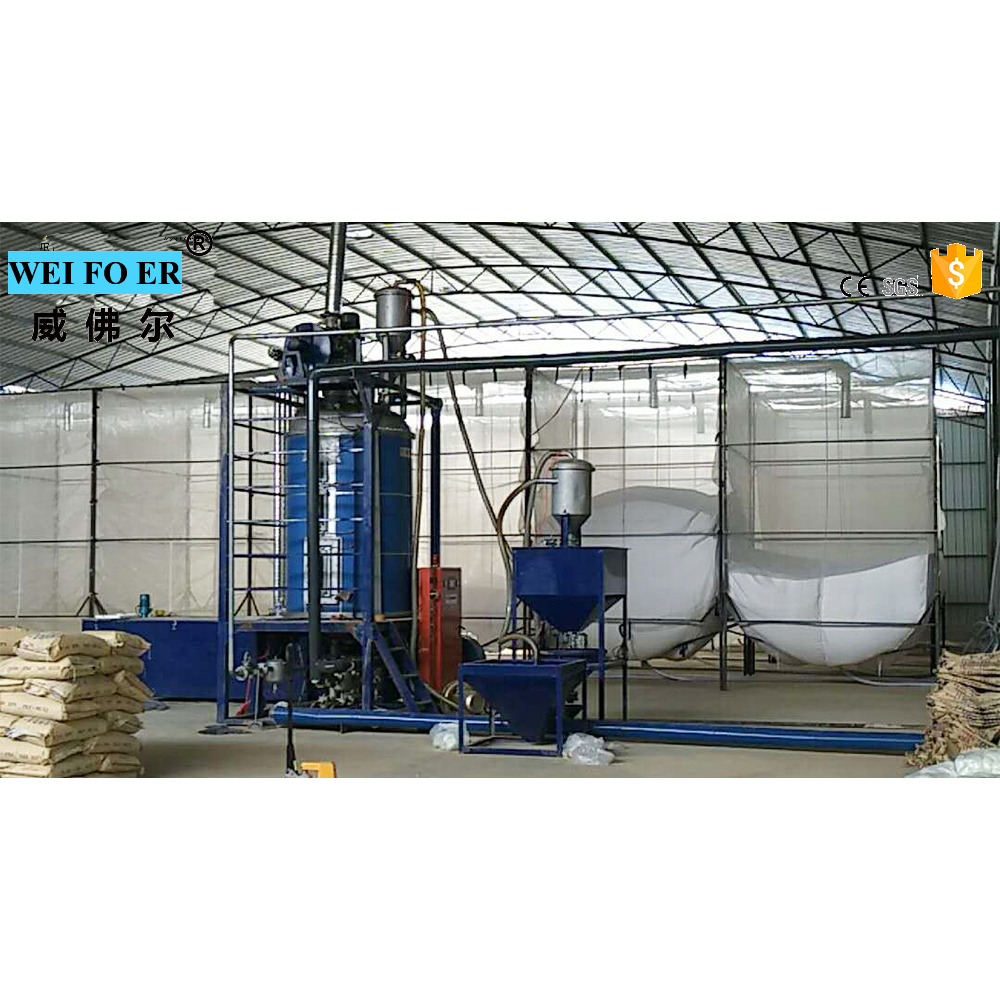

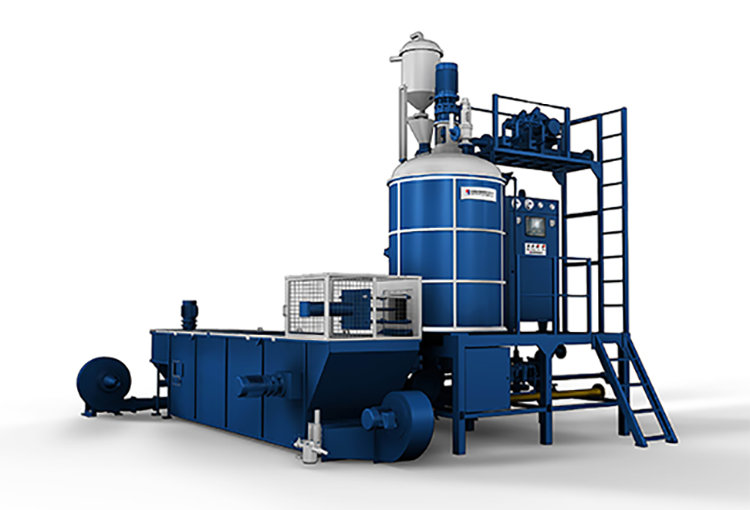

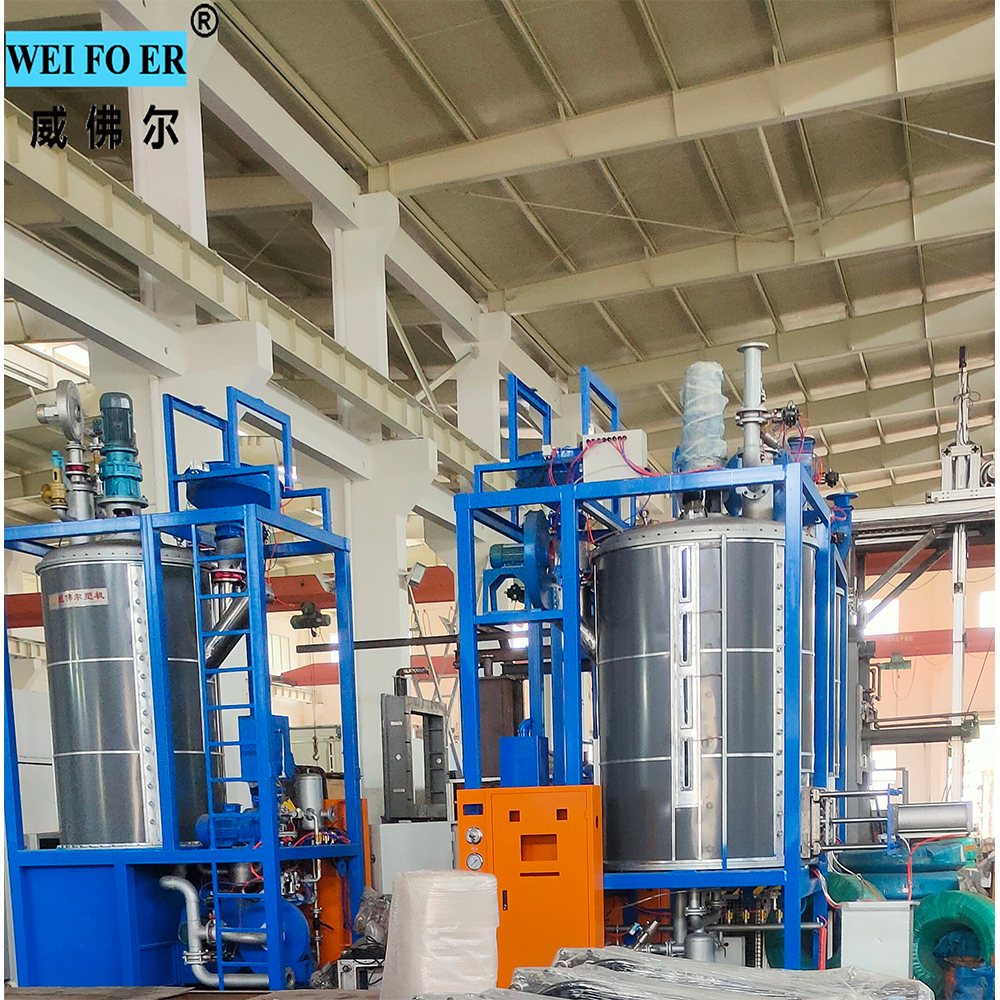

New eps styrofoam ball pre-expander machin

Main advantage:

1. Fully automatic and intelligent prodcution;

2. Human-machine cooperation, controlled by PLC and color touch screen, easy to operate;

3. Accurate density, high output and energy-saving

4. Smooth operation and stable



Function Description:

1. This machine accept PLC and color touch screen control, automatic feeding, automatic control barrel temperature and pressure, automatic sensor testing material;

2. The barrel is made by stainless steel, realize constant pressure foaming;

3. Control barrel temperature and pressure by Japanese imported pressure reducing valve and Germany imported proportional valve;

4. Using famous brand electrical components and pneumatic components, to ensure the machine running stable and smooth operation;

5. Using the photoelectric to control the expansion material volume,making the expansion density uniform;

6. Automatic discharge the material, by using fan to blow material, increase the discharge speed;


Product Description




SubjectsBatch Pre-expander Machine
Model   FW-YF1100-1FW-YF1500-1
ChamberDiameterØ1100mmØ1500mm
Height1500mm2200mm
Volume0.95m³3m³
Expansion RateFirst Time Expansion12-30kg/m³12-20kg/m³
Density Tolerance≤±3%≤±3%
Cycle Time≤120s/cycle≤120s/cycle
SteamEntryDN40DN50
Pressure0.4-0.6Mpa0.4-0.6Mpa
Consumption3.5-7kg/cycle6-9kg/cycle
Compressed AirEntryDN40DN50
Pressure0.4-0.6Mpa0.4-0.6Mpa
Consumption0.5-0.6m³/cycle0.6-0.7m³/cycle
ExhaustUpperDN100DN150
LowerDN80DN100
Throughput12g/l (kg/h)≥340≥633
15g/l (kg/h)≥420≥790
20g/l (kg/h)≥570≥1200
25g/l (kg/h)≥710--
30g/l (kg/h)≥710--
Material Conveying Port200mm200mm
PowerSpindle Motor4kw7.5kw
Discharge Fan1.5kw2.2kw
Exhaust Fan1.5kw2.2kw
Vacuum Pump5.5kw5.5kw
Drying Fan3kw4kw
Material Conveying Fan4kw7.5kw
Feeding and Mixing Motor0.75kw0.75kw
Crushing Motor0.55kw0.55kw
Total Installed Power20.8kw30.2kw
Overall DimensionL5600mm6000mm
W3100mm3700mm
H4500mm5400mm
Machine Weight3000kg4000kg

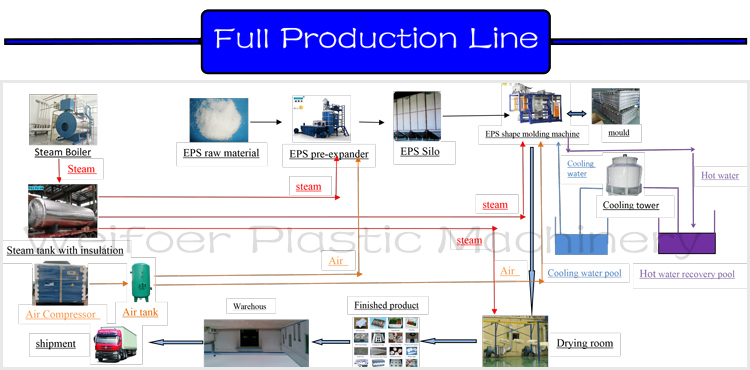

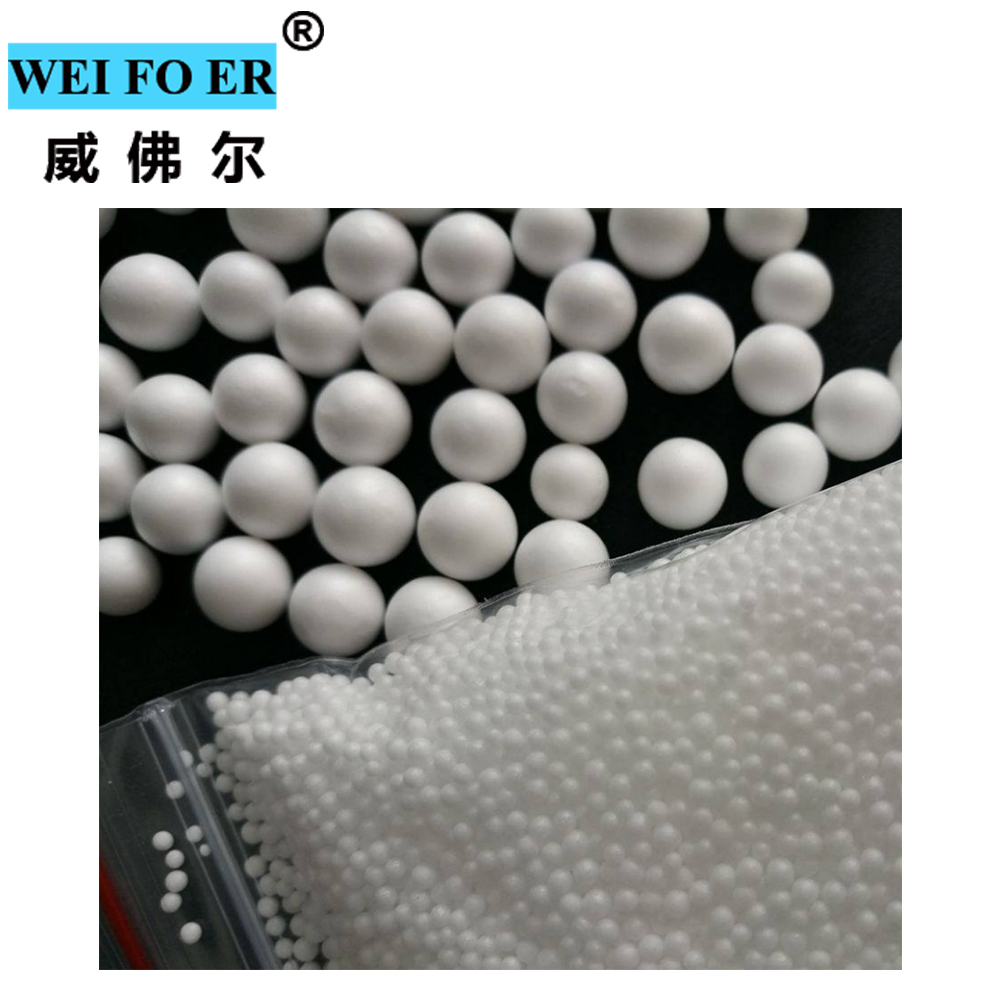

a---EPS pre-expander: it is used to expand the eps raw material to foamed beads;






Company

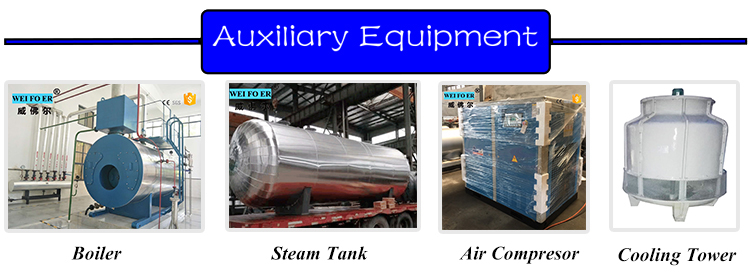

Hangzhou Fuyang Fuwei EPS Machinery Co., Ltd, "Weifoer Plastic Machienry",  a professional eps machine manufacturer, since 1984. Our mail product has: eps pre-expander machine, eps shape molidng machine, eps block moulding machine, eps cutting machine, eps foam mould, silo, filling gun, ejector and all kinds spare parts for eps machine; auxilliary equipment has steam boile, stean tank with insulation, air compressor, air tank, cooling tower, water pump and so on. If you are interested in our eps machine, contact us. WhatsApp:+86-18257172586

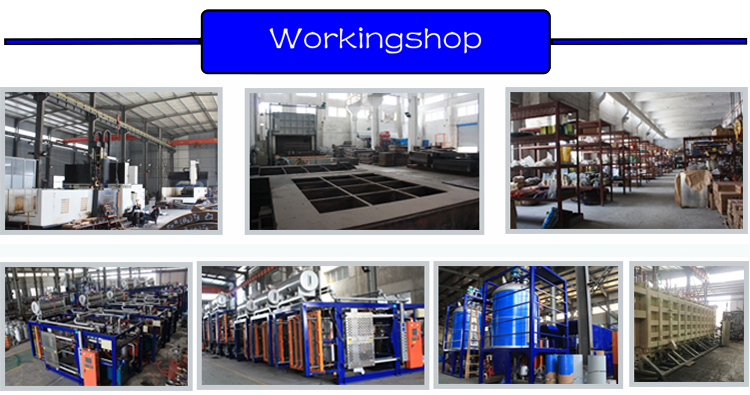

workshop show

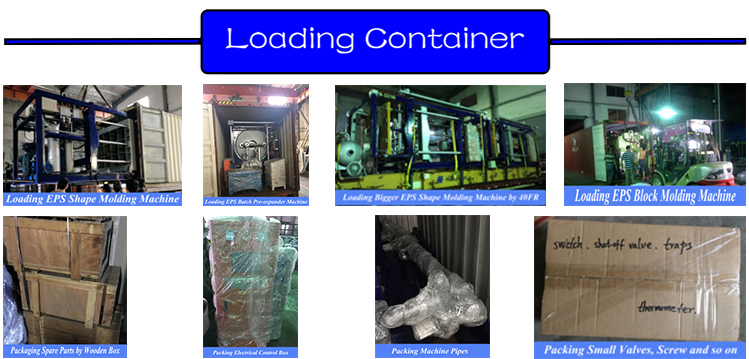

Packaging & Shipping


Standard export packaging:

---Outer package: standard export wooden cases;

---Inner package: plastic paper or wrapped with stretch film and etc.

Shipping:

---By sea from Shanghai or Ningbo port;

---By train from Ningbo station;

---By truck from Kashgar, Urumuqi or other checkpoint
